Tractor 1987 108-4 RER D&A TIPL sn.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

IPL from Toro Master Parts Viewer
42 pages 2.65MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.


Tractor weight 370 lbs. with mower deck

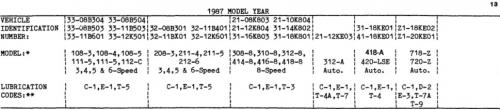

Lube chart SS


Details & Attachments
2 pages 110.50KB



Tractor drive belt 110364 replaced by 113105 - (A x 33.10" or 1/2" x 33.1")


Mower drive belt 112114 - (1/2" x 40.4")
Mower spindle belt 110420 replaced by 114567 - (1/2" x 47.91")



110397 and 111144 blade replaced by 112560 (3/4" center hole)

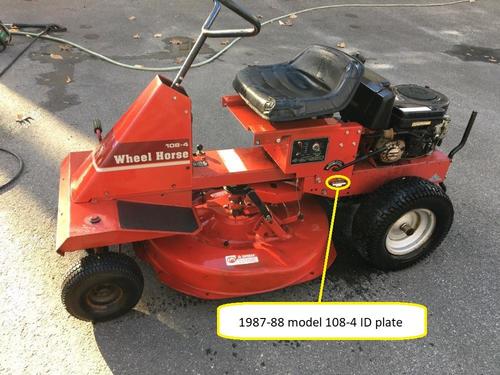

1987 108-4 model 33-08B401

On the Belgium list




×
×
