About This File
IPL from Toro Master Parts Viewer
9 pages 1.82MB - for model 1-0275
9 pages 627.83KB - for model 1-0270
Transmission drive belt 8133 (4L x 73.8" or 1/2" x 73.8")
Notes on the Attachment list
The 5-0600 rear discharge mower deck is not correct for the CG-7 and CG-7R. The 5-7362, 5-0610 and 5-0611 are correct.
The 5-0710 side discharge mower deck is not correct for the CG-7 and CG-7R. The 5-2365, 5-0701 and 5-0702 are correct.

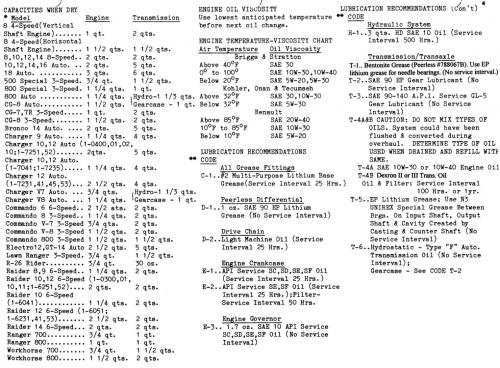

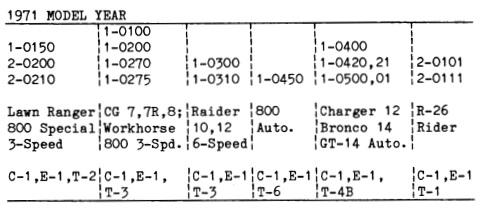

Lube chart SS
Details & Attachments
3 pages 111.85KB
1971 CG-7 3-Speed model 1-0275
1971 serial numbers that have shown up for the 1-0275
807560 - Model 1-0275-6
807644
807818 - Model year a guess
------------------------------------------------------------------------------
Details & Attachments
3 pages 111.90KB
1971 CG-7R 3-Speed model 1-0270
