Tractor 1990 310-8 D&A TIPL SN.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

IPL Wiring from Toro Master Parts Viewer
45 pages 3.90MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

Original operator manual #810631R1
Original IPL #810726R1
On the Belgium list



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

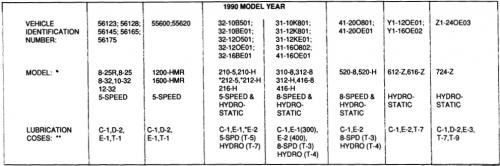

Lube chart SS



Details & Attachments
3 pages 122.47KB

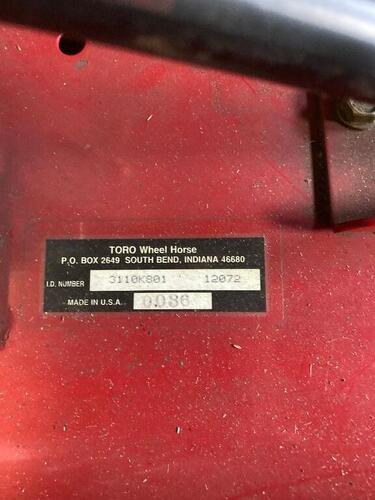

1990 310-8 model 31-10K801
1990 serial numbers that have shown up for the 31-10K801

0010080 -Build date 1989 921x
0010211
0010589 - Build date 1989 9242 August 30 Wednesday
0010827 - Build date 1989 9282 October 09 Monday
0011103 - Build date 1990 0010 January 10 Wednesday
0011490
0011752 - Uses 110995 transmission with 1-1/8" axles and 4-pinion differential (From Toro MPV)
0011753 - Uses 110995 transmission with 1-1/8" axles and 4-pinion differential (From Toro MPV)
0011754 - Uses 110995 transmission with 1-1/8" axles and 4-pinion differential (From Toro MPV)
0011755 - Uses 110995 transmission with 1-1/8" axles and 4-pinion differential (From Toro MPV)
0012119

0012149

0012809
0012185
0012252
0012852

0013194 - Build date 1990 0081 March 22 Thursday
0013272

0013816 - Build date 1990 0110 April 20 Friday
0013976 - Build date 1990 0134 May 14 Monday
0014471
0014482 - Build date 1990 0152 June 01 Friday

IPL Wiring from Toro Master Parts Viewer
25 pages 1.91MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Kohler M10S-461521 ipl



Links

For tractor operator manual see

For engine service manual see

For transmission service manual see




×
×
