Tractor 1987 300-Series OM Wiring.pdf


7 Screenshots

About This File

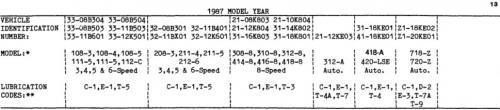

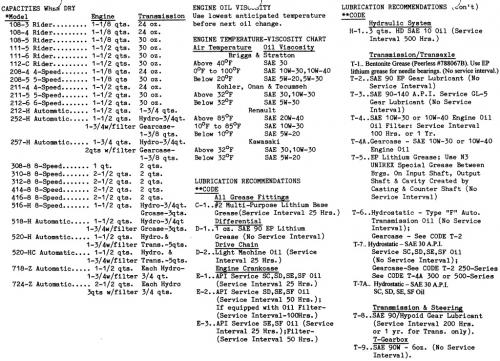

Lube chart SS



Operator manual #810473R1

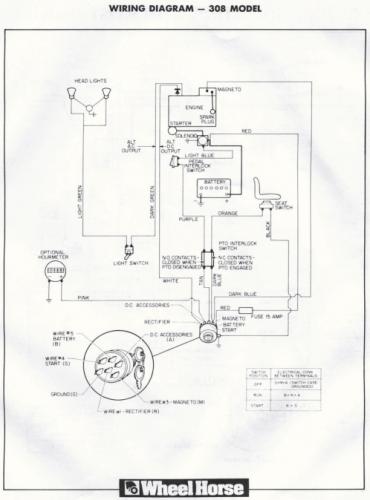

Wiring

35 pages 11.08MB



1987 308-8 model 21-08K803 with magneto ignition and 1.25 amp unregulated charging system



1987 310-8 model 21-10K804 with magneto ignition and 3 amp unregulated charging system



1987 312-8 model 21-12K804 with magneto ignition and 15 amp stator

1987 312-A model 21-12KE03 with magneto ignition and 15 amp stator



1987 IPL is #810480R1



First year to use Magnum engines with 15 amp stator with rectifier/regulator in the blower housing

310 and 312 has low oil switch and relay



Part 1 of 3

11 of 35 pages 3.96MB



Part 2 of 3

12 of 35 pages 4.18MB



Part 3 of 3

12 of 35 pages 2.94MB
