Mower Rotary 37in SD 1990 05-37SC02 OM TIPL SN.pdf

Sign in to follow this

2 Screenshots

About This File

Operator manual #810695R1 or 810695 R1
8 pages 1.75MB

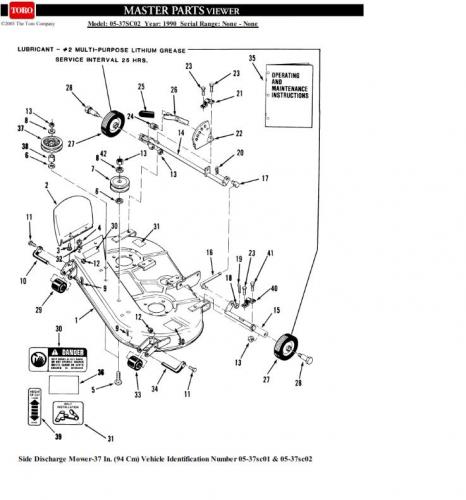

IPL from Toro Master Parts Viewer
6 pages 376.29KB

Fits 300-Series 400-Series tractors in 1990

Drive and spindle belt 110265 (1/2" x 141.00")



Left deck flat-idler pulley 112791

Right deck flat-idler pulley 119130 replaced by 119130-03



Left front V-idler pulley 104974 replaced by 92-7103

Right front flat-idler pulley 104975



Mower Rotary 1990 37in SD model 05-37SC02

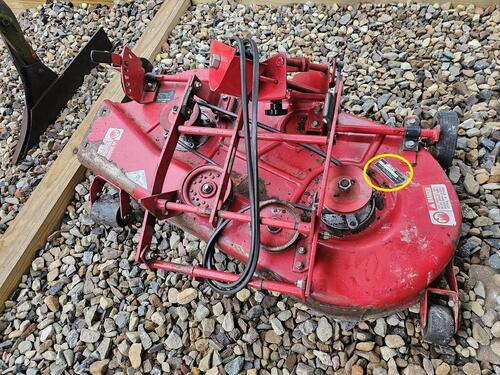

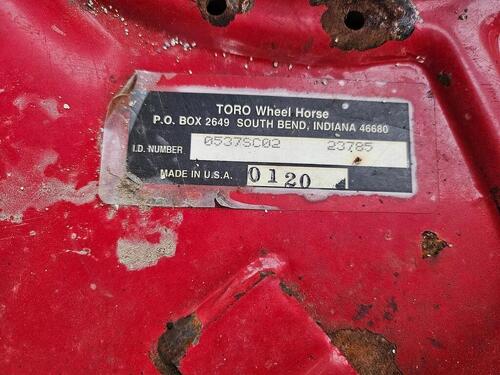

1990 serial numbers that have shown up for the 05-37SC02
0023307
0023630 - Build date 1990 0117 April 27 Friday
0024005




×
