Tractor 1972 CG-7 & CG-7R 3-Speed D&A TIPL sn.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
9 pages 1.82MB - 1-0275
9 pages 627.83KB - 1-0270



Transmission drive belt 8133 (4L x 73.8" or 1/2" x 73.8")

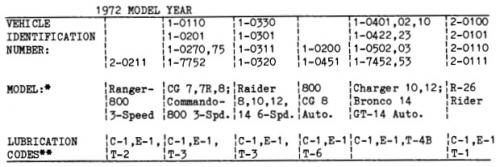

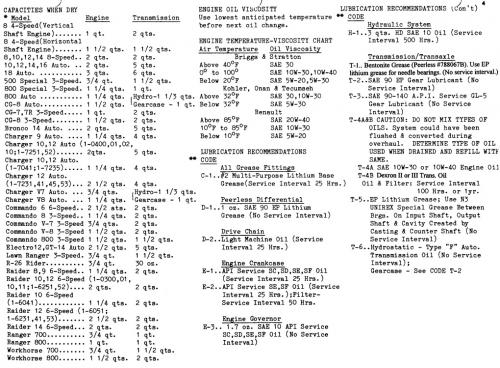

Lube chart SS



Details & Attachments
3 pages 110.42KB
1972 CG-7 3-Speed model 1-0275 - Electric start



-----------------------------------------------------------------------------------



Details & Attachments
3 pages 111.63KB
1972 CG-7R 3-Speed model 1-0270 - Recoil start






×
×
