About This File
IPL from Toro Master Parts Viewer
Ag tractor kit
Agricultural tractor kit
Possibly intended for the 1987 400-Series tractors
20 x 8.00-10 front wheels and tires used only with this tilling kit
27 x 8.50-15 6-stud rear wheels and ag tires used only with this tilling kit
Heavy duty 107124 front wheel bearings as used on HD front spindle kits and 1980-83 E-141 8-speed tractors
Rear axle 6-stud hubs 102372 used on D-Series Auto models and C-195 Twin Auto
Left and right foot rests used only with this tilling kit
Idler plate 111868 used only with this tilling kit

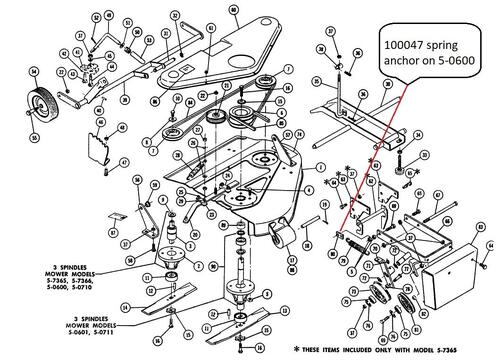

Spring anchor 100047 also used on 5-0600 style mower deck for front pto idler pulley tension
Eight cotter pins 908026 are not cotter pins but are 5/16"-18 x 2-3/4" bolts so part number must be wrong (8 cotter pins with 16 flat washers and 8 tube spacers shown in the illustration)

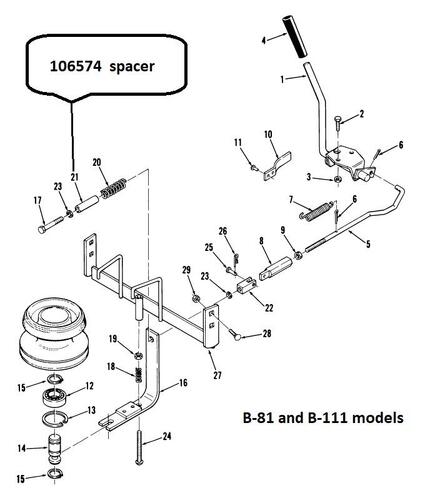

Eight tube spacers 106574 are also used on B-81 and B-111 4-speed tractors for the pto clutch tension
What tractor was this 1987 kit intended for?
Tiller 1987 36in model 82823 kit
Tiller 1987 36in model 8-2823 kit
