Mower Rotary 48in SD 1987 05-48SC01 3-4-500 OM TIPL sn.pdf

Sign in to follow this

gwest_ca

3 Screenshots

About This File

Operator manual #810403R1
8 pages 1.35MB
Dated 5/85

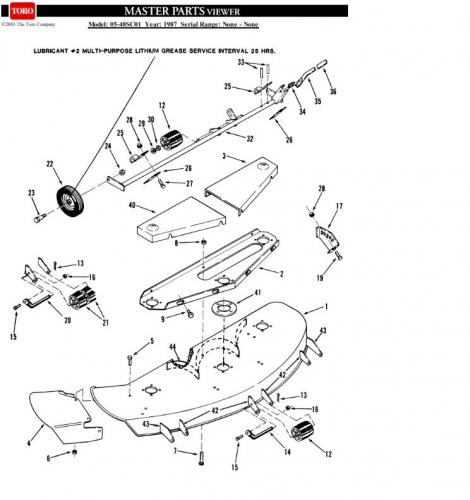

IPL from Toro Master Parts Viewer
6 pages 426.07KB

Fits 12hp and up 300, 400-Series tractors and 1988 520-Series

Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")



Uses Z spindle assembly



106078 blade replaced by 106637 3-blade set (3/4" round hole)

Mower Rotary 1987 48in SD model 05-48SC01




×
×
