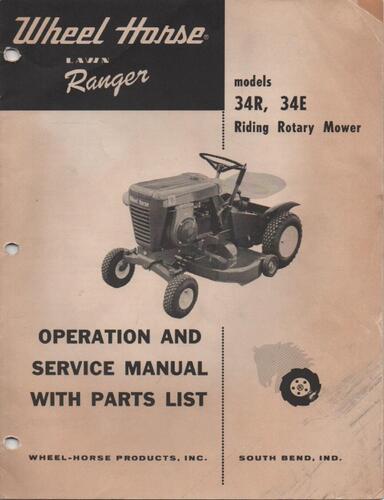

Tractor 1964 34E & 34R Lawn Ranger D&A IPL Wiring SN.pdf

Sign in to follow this

5 Screenshots

About This File

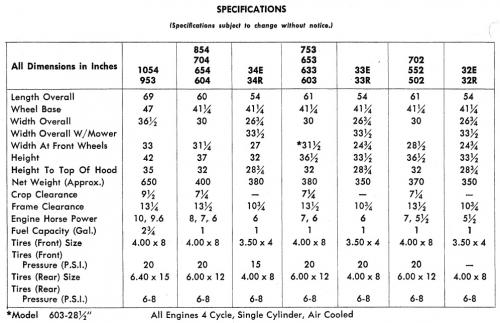

Service notes #A-7136
IPL
Wiring
8 pages 867.16KB



Tractor drive belt for 34E and 34R #9691 (1/2" x 70")


RM-114 mower deck
Mower belt 1555 replaced by 113912 (1/2" x 44")



8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades



Ignition switch for 34E is 4987 replaced by 101482



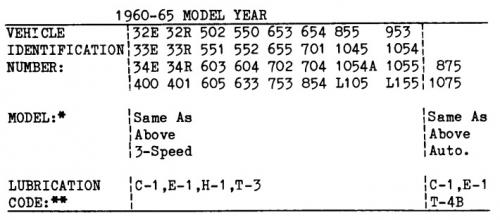

Lube chart SS


Details & Attachments
2 pages 108.72KB

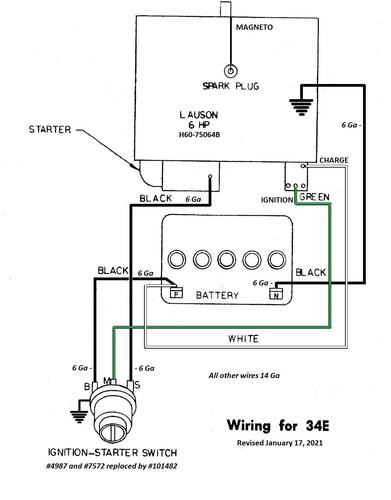

1964 model 34E Lawn Ranger
1964 serial numbers that have shown up for the 34E
A-61568
A-61827
A-72425 - May be a 34R
A-73376

A-73408
004073
006285
006356

006453
006824 - May be a 34R
007050 - May be a 34R
007096
007321
008438
015871 - May be a 34R
016420
016581 - May be a 34R
017471



Details & Attachments
2 pages 107.84KB

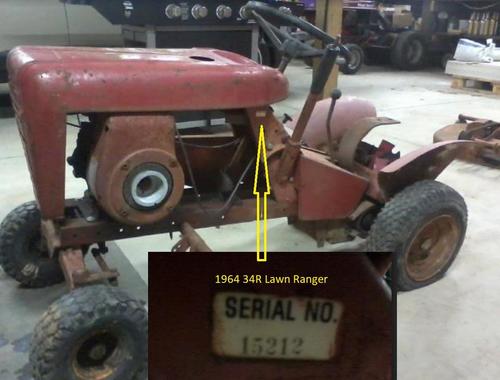

1964 model 34R Lawn Ranger
1964 serial numbers that have shown up for the 34R
A-72425 - May be a 34E
006015
006824 - May be a 34E
007050 - May be a 34E
015084
015159

015212
015871 - May be a 34E
016581 - May be a 34E
