Mower Rotary 36in RD 1986-1990 05-36MR04 OM IPL SN.pdf


admin

3 Screenshots

About This File

Operator manuals
8 pages 1.35MB - #810403R1 or 810403 R1
8 pages 1.79MB - #810518R1 or 810518 R1

Illustrated parts list #810407R1 or 810407 R1
7 pages 2.28MB
Dated 4/85

Fits 300-Series, 400-Series and some 500-Series tractors
Fits B-Series and C-Series tractors


Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511


Drive belt 102741 (1/2" x 96.6") for C-Series, 300, 400 and some 500 tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")



Spindle belt 8411 (1/2" x 76.94")

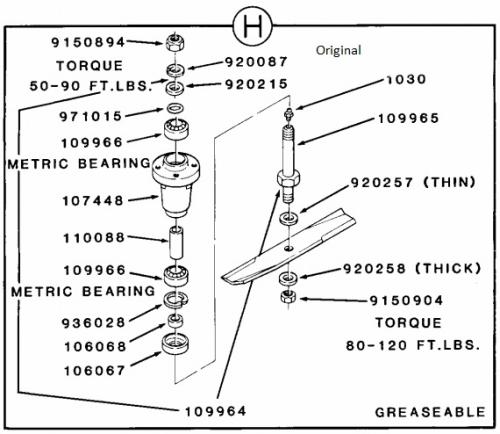

Mower spindle assembly H



107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)

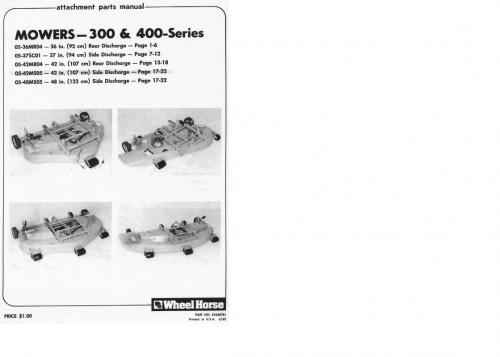

Mower Rotary 1986 36in RD model 05-36MR04

1986 serial numbers that have shown up for the 05-36MR04
61109  - Model year a guess

61523


Mower Rotary 1987 36in RD model 05-36MR04

Mower Rotary 1988 36in RD model 05-36MR04

1988 serial numbers that have shown up for the 05-36MR04

70246 - Build date 1987 7211 July 30 Thursday

71044 - Build date 1987 7288 October 15 Thursday

71654



Mower Rotary 1989 36in RD model 05-36MR04

1989 serial numbers that have shown up for the 05-36MR04

80871 - Build date 1988 8287 October 13 Thursday

81226 - Model year a guess
81297 - Model year a guess
81392 - Model year a guess


Mower Rotary 1990 36in RD model 05-36MR04

1990 serial numbers that have shown up for the 05-36MR04

0020588 - Build date 1990 0108 April 18 Wednesday

0020661 - Build date 1990 0108 April 18 Wednesday




×
×
