Mower Rotary 48in SD 1990 15-48SC02 3-4-500 OM TIPL SN.pdf

Sign in to follow this

admin

2 Screenshots

About This File

Operator manual #810657R1 or 810657 R1
8 pages 2.40MB
Dated 08/89

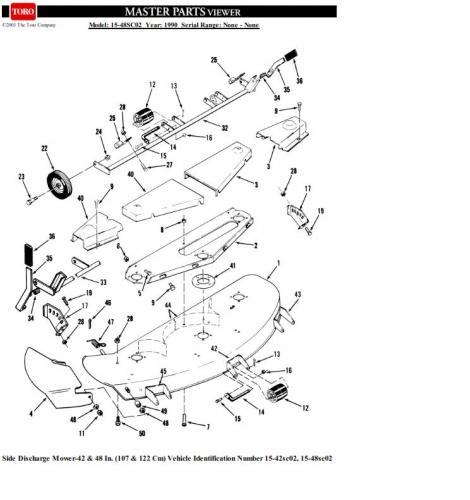

IPL from Toro master Parts Viewer
6 pages 407.99KB

Shows the 114647 thin blade wrench item #40

Fits 300, 400 and 500-Series tractors

Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")



106078 blade replaced by 106637 3-blade set (3/4" round hole)

Mower Rotary 1990 48in SD model 15-48SC02

1990 serial numbers that have shown up for the 15-48SC02

0020412

0020511
0021441 - Build date 1989 9320 November 16 Thursday

0021675

0022202 - Build date 1990 000x January
0022441 - Build date 1990 0008 January 08 Monday

0023183 - Build date 1990 0033 February 02 Friday

0023905
0024030 - Build date 1990 0059 February 28 Thursday
0025830 - Build date 1990 0131 May 11 Friday




×
×
