Hitch Rear Clevis 1994-2009 Implement 8-5518.pdf

Sign in to follow this

admin

4 Screenshots

About This File

Operator manual #810834RevB

4 pages 420.22KB

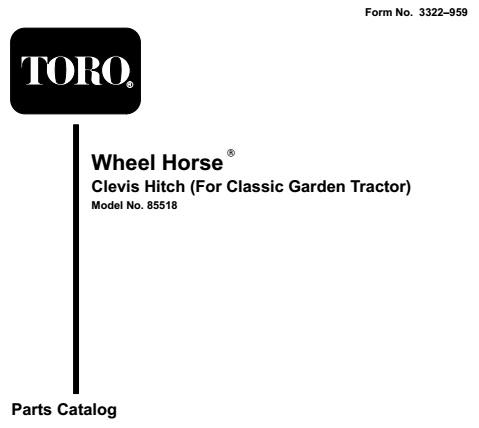

IPL #3322-959

2 pages 41.68KB

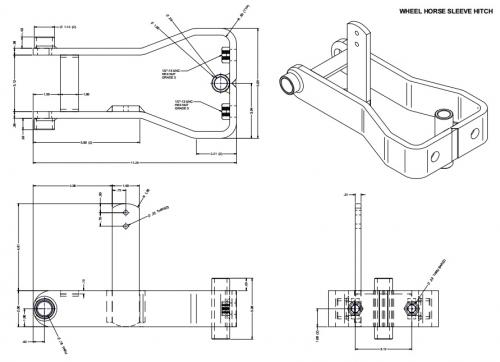

Measured drawing clevis hitch

1 page 27.06KB

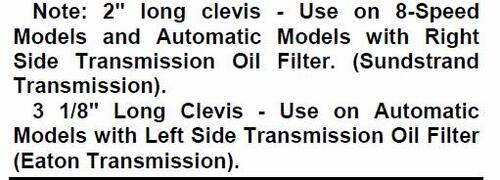

The long clevis at the lift end (front) is for hydro tractors as they have a longer tube to go over the hydro pump. The short clevis is for 8 speeds. The cables are the same length for both.

Lee1977



85518 @ Toro

Fits 300 400 and 500-Series tractors



Hitch Rear Clevis Type-A 1994 Implement 8-5518
