Tractor 1961 401, 551 & 701 D&A OM IPL Wiring SN.pdf

Sign in to follow this

9 Screenshots

About This File

Operator manual
IPL
Wiring
12 pages 1.88MB
Dated 1/10/61

Tractor drive belt for 401 and 551 #1569 - (4L x 28.95" or 1/2" x 28.95")
Tractor drive belt for 701 #1576 replaced by 9691 - 1/2" x 70"



Starter/Generator belt
Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
3V315 Gates .38"x31.5"
3V315 Napa .38"x31.5"



Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw rubber edge belt for grip
7315 Gates .41"x32.08" 36 degree
25-7315 Napa .41"x32.08" 36 degree



Ignition switch with 3 terminals for 550 is 3656 and nla. See PSB #069



Not documented - 1961 CBR-327 front mounted sickle bar mower for the 701
1 page of part number corrections 30.15KB



Model 701 only model to use braces on the rear fenders because the tool box was short.

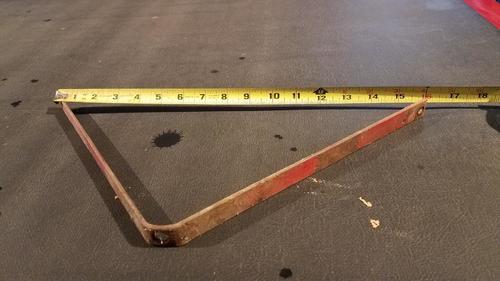

3 photos 463KB supplied by CasualObserver for dimensions. Brace not in the parts list.

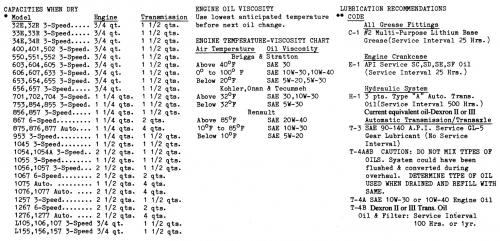

Lube chart SS



Details & Attachments
2 pages 103.48KB
1961 model 401
1961 serial numbers that have shown up for the 401
42646 - Reported to be the first 401
42908
43062
43082
43380
43437
43755
43867
43950
43963
43975
44034
44506
44641
48188
49361
49925
49982
50023
50053
50217
50930 - May be a 551 or 701
53101
53217
56299
56547
56660
56806 - May be a 551
56870
56936 - May be a 551
57103 - May be a 551
60304

60315
60419
60436
60610
60695

--------------------------------------------------------------------

551 frame is 6" wide

Details and attachments
2 pages 103.99KB
1961 model 551
1961 serial numbers that have shown up for the 551
41724 - May be a 701, misread or typo
46309
46412

46574
46630
46906
47115
49694
50930 - May be a 401 or 701
52220
52596
53812
53882
53890
56806 - May be a 401
56936 - May be a 401
57103 - May be a 401
57322
58532
59014
59148
59745



----------------------------------------------------------------------

Details and attachments
3 pages 117.93KB
1961 model 701
1961 serial numbers that have shown up for the 701

41724 - May be a 551, misread or typo
45709
47457
47479

47676
47770
47793

47969
48085
48110
48210
48226
48232

48234

48237

48289
48317

48358
48441
48584

48596
48684
48695
48736
48832 - Model a guess
48939
48967
49022

49026 - Now decaled a 702
49118
49122
50930 - May be a 401 or 551
51222
51337
51434

51588
51887
51952
51967
52014
54100
54140
54157
54209
54276
54395
54480
54530

54545
54609 - Model and year a guess

54666
54695
54735

54836
55082
55894
55895
55907

55968
55978
56000
56141
56142
56193

56991
57014
57078
57165
57222
57662
57673
57707
57720
57782

57811
57834
57854
57888
58037
58048
58364

59309
59385 - Located in the UK
59479
59480
59960
59963

59969
