1985-1990

Sign in to follow this

No serial numbers published

304 files

  1. Free

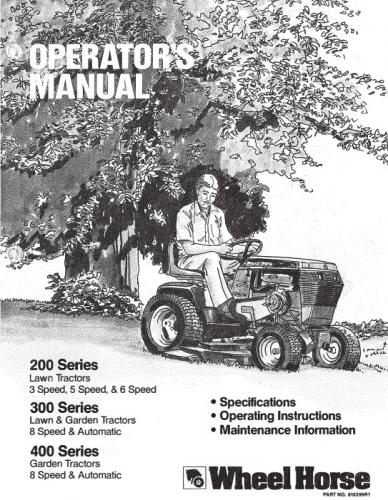

    Tractor 1986 300-Series OM Wiring.pdf

    Operator manual #810399R1 - Wrong oil capacities for single cylinder Kohler engines
    Wiring

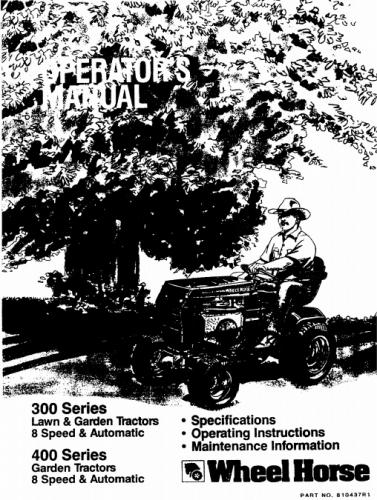

    This first manual was replaced by #810437R1 to correct the oil capacity for the new in 1986 low oil switch and relay.
    38 pages 2.82MB

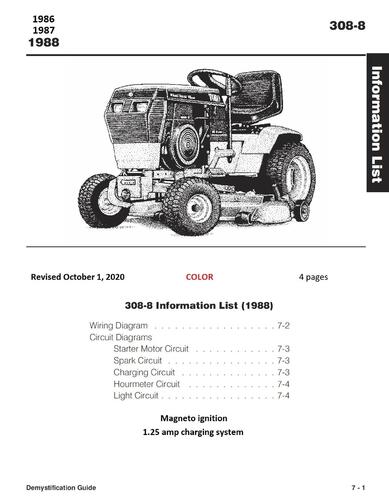

    1986 308-8 model 21-08K801
    1986 308-8 model 21-08K802

    1986 310-8 model 21-10K802
    1986 310-8 model 21-10K803

    1986 312-8 model 21-12K802
    1986 312-8 model 21-12K803

    1986 312-A model 21-12KE01
    1986 312-A model 21-12KE02

    316 downloads

    Updated

  2. Free

    Tractor 1986 200-Series OM.pdf

    Operator manual #810399R1 or #810399 R1
    Wiring
    38 pages 2.82MB

    Note - This manual is not correct for the 300-Series and 400-Series (Engine oil capacities are not correct for the single cylinder models)

    Lube chart SS

    1986 208-3 model 22-08B302

    1986 211-3 model 22-11B302
    1986 211-3 model B2-11B392 - Listed @ Toro as 1987 model
    1986 211-5 model 22-11B502
    1986 211-6 model 22-11B601 - Not listed @ Toro

    140 downloads

    Updated

  3. Free

    Tractor 1985 416-8 Wiring.pdf

    Wiring diagram from OM #810372R1 or #810372 R1
    Battery ignition and 3 amp unregulated charging system

    1985 416-8 model 31-16K801

    60 downloads

    Updated

  4. Free

    Tractor 1985 300-Series Wiring.pdf

    Wiring diagram from OM #810372R1
    Battery ignition and 3 amp unregulated charging system

    1985 310-8 model 21-10K801
    1985 312-8 model 21-12K801
    1985 314-8 model 21-14K801
    1985 314-A model 21-14KE01

    358 downloads

    Updated

  5. Free

    Tractor 1985 200-Series Wiring Detailed #810385R1.pdf

    Wiring Detailed from SM Poor copy
    2 pages 4.98MB

    1985 208-3 model 22-08B301

    1985 211-3 model 22-11B301
    1985 211-5 model 22-11B501
    1985 211-A model 22-11BE01

    1985 216-5 model 22-16B501

    97 downloads

    Updated

  6. Free

    Tractor 1985 200-Series SM.pdf

    Service manual Very poor copy No wiring #810385R1
    13 pages 2.72MB
    Dated 09/83

    Lube chart SS

    1985 208-3 model 22-08B301

    1985 211-3 model 22-11B301
    1985 211-5 model 22-11B501
    1985 211-A model 22-11BE01

    1985 216-5 model 22-16B501

    147 downloads

    Updated

  7. Free

    Tractor 1985 200-Series IPL.pdf

    IPL #810385R1 or #810385 R1
    46 pages 2.04MB
    Dated 09/83

    1985 208-3 model 22-08B301
    Transmission drive belt 108427 - (HA/4L x 88" or 1/2" x 88")

    -----------------------------------------------------------------------------------

    1985 211-3 model 22-11B301
    Transmission drive belt 108427 - (HA/4L x 88" or 1/2" x 88")

    -----------------------------------------------------------------------------------

    1985 211-5 model 22-11B501
    Transmission drive belt 108427 - (HA/4L x 88" or 1/2" x 88")

    ------------------------------------------------------------------------

    1985 211-A model 22-11BE01
    Transmission drive belt in chart shows 109428 belt. Should be 109427 as per IPL - (HA x 77" or 1/2" x 77")

    -----------------------------------------------------------------------

    1985 216-5 model 22-16B501
    Transmission drive belt 108427 - (HA/4L x 88" or 1/2" x 88")

    131 downloads

    Updated

  8. Free

    Tank Fuel Auxiliary 8-3300 OM IPL #810505R1.pdf

    Operator manual
    IPL
    Sold 1988-2000
    Dated 9/88
    4 pages

    69 downloads

    Updated

  9. Free

    Tractor 1988 400-Series 8-Speed OM Wiring.pdf

    Operator manual #810473R1
    Wiring
    35 pages 11.08MB

    Part 1 of 3
    11 of 35 pages 3.96MB

    Part 2 of 3
    12 of 35 pages 4.18MB

    Part 3 of 3
    12 of 35 pages 2.94MB

    Lube chart SS

    1988 416-8 model 31-16K804

    157 downloads

    Updated

  10. Free

    Tractor 1987 300-Series OM Wiring.pdf

    Lube chart SS

    Operator manual #810473R1
    Wiring
    35 pages 11.08MB

    1987 308-8 model 21-08K803 with magneto ignition and 1.25 amp unregulated charging system

    1987 310-8 model 21-10K804 with magneto ignition and 3 amp unregulated charging system

    1987 312-8 model 21-12K804 with magneto ignition and 15 amp stator
    1987 312-A model 21-12KE03 with magneto ignition and 15 amp stator

    1987 IPL is #810480R1

    First year to use Magnum engines with 15 amp stator with rectifier/regulator in the blower housing
    310 and 312 has low oil switch and relay

    Part 1 of 3
    11 of 35 pages 3.96MB

    Part 2 of 3
    12 of 35 pages 4.18MB

    Part 3 of 3
    12 of 35 pages 2.94MB

    431 downloads

    Updated

  11. Free

    Tractor 1987 400-Series OM Wiring.pdf

    Lube chart SS

    Operator manual #810473R1 or #810473 R1
    Wiring
    35 pages 11.08MB

    1987 IPL #810480R1 for all

    Part 1 of 3
    11 of 35 pages 3.96MB

    Part 2 of 3
    12 of 35 pages 4.18MB

    Part 3 of 3
    12 of 35 pages 2.94MB

    1987 414-8 model 31-14K802 with magneto ignition and 3 amp unregulated charging system

    1987 416-8 model 31-16K803 with magneto ignition and 15 amp stator

    1987 418-8 model 31-18K801 with magneto ignition and 15 amp stator
    1987 418-A model 31-18KE01 with magneto ignition and 15 amp stator
    1987 418-C model 41-18KE01 with magneto ignition and 15 amp stator

    710 downloads

    Updated

  12. Free

    Tractor 1987 416-8 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    41 pages 3.73MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Original IPL #810480R1
    4-pinion differential @ Toro not correct so replaced the ipl with the correct pages
    On the Belgium list

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
    Tractor weight 553 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 118.21KB

    1987 416-8 model 31-16K803 with magneto ignition and 15 amp stator

    1987 serial numbers that have shown up for the 31-16K803
    20262
    20334
    20421
    21396
    21522
    21603




    46 downloads

    Updated

  13. Free

    Tractor 1987 418-8 D&A TIPL sn.pdf

    IPL from Toro Master Parts Viewer
    41 pages 3.85MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
    4-pinion differential @ Toro not correct so replaced the ipl with the correct pages

    Original IPL #810480R1
    On the Belgium list

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
    Tractor weight 585 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 118.04KB

    1987 418-8 model 31-18K801 with magneto ignition and 15 amp stator

    Electric attachment lift standard equipment
    Repair kits for 111273 linear actuator
    Clutch assembly 110990
    Cover tube 110987
    Drive screw 110991
    Front housing 110993
    Intermediate gear set 110989
    Motor 110992
    Rear housing 11988
    Sealing kit 110994

    163 downloads

    Updated

  14. Free

    Tractor 1987 418-A D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    46 pages 3.49MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Original IPL #810480R1
    On the Belgium list

    Tractor weight 739 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 119.06KB

    Transmission drive belt 108501 - (HB/5L x 81.50" or 5/8" x 81.5")

    1987 418-A model 31-18KE01 with magneto ignition and 15 amp stator

    1987 serial numbers that have shown up for the 31-18KE01
    20135 - Build date 1986 6225 August 13 Wednesday
    20273
    20503
    21006


    81 downloads

    Updated

  15. Free

    Tractor 1987 212-6 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    20 pages 1.34MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
    No attachment lift page
    No decal page
    No seat page
    No wheel and tire page
    On the Belgium list
    Original IPL #810503R1

    Tractor weight 425 lbs. without mower deck

    Lube chart SS

    Details & Attachments
    2 pages 110.11KB

    Transmission drive belt 111435 - (A x 91.7" or 1/2" x 91.7")

    1987 212-6 model 32-12K601
    1987 serial numbers that have shown up for the 32-12K601
    27578
    28329
    28532
    28681
    28906
    28943
    29495
    29530



    45 downloads

    Updated

  16. Free

    Tractor 1987 211-5 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    25 pages 1.96MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
    No attachment lift page
    No pto clutch page

    Tractor weight 401 lbs. without mower deck
    1986 on the Belgium list
    Original IPL #810457R1
    Lube chart SS

    Details & Attachments
    2 pages 109.11KB

    Transmission drive belt 111435 - (A x 91.7" or 1/2" x 91.7") - Not on belt chart

    1987 211-5 model 32-11B501
    1987 serial numbers that have shown up for the 32-11B501

    ---------------------------------------------------------------------------------------------------------------------------------------

    IPL from Toro Master Parts Viewer
    20 pages 1.34MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    No attachments lift page
    No decal page
    No seat page
    No wheel and tire page
    On the Belgium list
    Original IPL #810503R1

    Details & Attachments
    2 pages 111.35KB

    Transmission drive belt 111435 - (A x 91.7" or 1/2" x 91.7")

    1987 211-5 model 32-11BX01

    1987 serial numbers that have shown up for the 32-11BX01
    27496
    28561
    29890
    30428

    34 downloads

    Updated

  17. Free

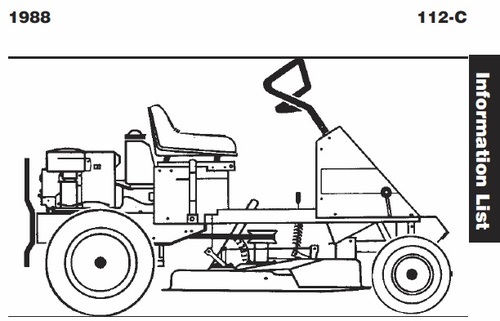

    Tractor 1987 111-6 RER D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    42 pages 2.65MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Tractor weight 400 lbs. with mower deck
    Lube chart SS

    Details & Attachments
    2 pages 110.61KB

    Tractor drive belt 110364 replaced by 113105 - (A x 33.10" or 1/2" x 33.1")

    Mower drive belt 112114 - (1/2" x 40.4")
    Mower spindle belt 110420 replaced by 114567 - (1/2" x 47.91")

    110397 and 111144 blade replaced by 112560 (3/4" center hole)

    1987 111-6 model 33-11B601

    1987 serial numbers that have shown up for the 33-11B601
    31680

    On the Belgium list

    33 downloads

    Updated

  18. Free

    Tractor 1987 111-5 RER D&A TIPL sn.pdf

    IPL from Toro Master Parts Viewer
    42 pages 2.65MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Tractor weight 400 lbs. with mower deck
    Lube chart SS

    Details & Attachments
    2 pages 111.34KB

    Tractor drive belt 110364 replaced by 113105 - (A x 33.10" or 1/2" x 33.1"

    Mower drive belt 112114 - (1/2" x 40.4")
    Mower spindle belt 110420 replaced by 114567 - (1/2" x 47.91")

    110397 and 111144 blade replaced by 112560 (3/4" center hole)

    1987 111-5 model 33-11B503

    On the Belgium list

    5 downloads

    Updated

  19. Free

    Tractor 1987 108-4 RER D&A TIPL sn.pdf

    IPL from Toro Master Parts Viewer
    42 pages 2.65MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Tractor weight 370 lbs. with mower deck
    Lube chart SS

    Details & Attachments
    2 pages 110.50KB

    Tractor drive belt 110364 replaced by 113105 - (A x 33.10" or 1/2" x 33.1")

    Mower drive belt 112114 - (1/2" x 40.4")
    Mower spindle belt 110420 replaced by 114567 - (1/2" x 47.91")

    110397 and 111144 blade replaced by 112560 (3/4" center hole)

    1987 108-4 model 33-08B401

    On the Belgium list

    31 downloads

    Updated

  20. Free

    Tractor 1987 108-3 RER D&A TIPL sn.pdf

    IPL from Toro Master Parts Viewer
    42 pages 2.65MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Tractor weight 370 lbs. with mower deck
    Lube chart SS

    Details & Attachments
    2 pages 110.72KB

    Tractor drive belt 110364 replaced by 113105 - (A x 33.10" or 1/2" x 33.1")

    Mower drive belt 112114 - (1/2" x 40.4")
    Mower spindle belt 110420 replaced by 114567 - (1/2" x 47.91")

    110397 and 111144 blade replaced by 112560 (3/4" center hole)

    1987 108-3 model 33-08B304

    On the Belgium list

    18 downloads

    Updated

  21. Free

    Tractor 1987 211-4 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    20 pages 1.34MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
    No attachment lift page
    No decal page
    No seat page
    No wheel and tire page
    On the Belgium list
    Original IPL #810503R1
    TIPL for model 32-11B402 may be the same.
    Tractor weight 398 lbs. without mower deck

    Lube chart SS

    Details & Attachments
    2 pages 110.69KB

    Transmission drive belt 111435 - (A x 91.7" or 1/2" x 91.7")

    1987 211-4 model 32-11B401

    1987 serial numbers that have shown up for the 32-11B401
    29027
    29137
    29397

    47 downloads

    Updated

  22. Free

    Tractor 1986 211-5 & 211-6 D&A SN.pdf

    IPL from Toro Master Parts Viewer
    32 pages 2.27MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Transmission drive belt 108427 - (HA/4L x 88" or 1/2" x 88")
    Tractor weight 460 lbs.

    Lube chart SS

    Details & Attachments
    2 pages 110.72KB

    1986 211-5 model 22-11B502
    1986 serial numbers that have shown up for the 22-11B502
    23669 - Build date 1985 5302 October 29 Tuesday
    24038

    ----------------------------------------------------------------------------------------

    1986 211-6 model 22-11B601 - Not listed @ Toro - Not in Belgium list
    1986 211-6e model 22-11B601 - May be an export model
    Listed in PSB #301g
    Listed in belt chart
    Uses Briggs & Stratton 253707 type 0158-01
    Tractor weight 480 lbs.

    17 downloads

    Updated

  23. Free

    Tractor 1986 310-8 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    46 pages 3.28MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
    Tractor weight 634 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 116.56KB
    1986 310-8 model 21-10K802 - Probably manufactured by Wheel Horse
    1986 serial numbers that have shown up for the 21-10K802
    16586 - Build date 1985 5350 December 16 Monday
    16831
    18172
    18576

    -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    IPL from Toro Master Parts Viewer
    46 pages 3.29MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Details & Attachments
    3 pages 116.56KB
    1986 310-8 model 21-10K803 - Probably manufactured by Toro
    1986 serial numbers that have shown up for the 21-10K803
    95384

    95 downloads

    Updated

  24. Free

    Tractor 1986 312-8 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    46 pages 3.27MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
    Tractor weight 656 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 116.93KB
    1986 312-8 model 21-12K802 - Probably manufactured by Wheel Horse
    1986 serial numbers that have shown up for the 21-12K802
    15771
    16269
    17176
    17383
    18162
    18751
    18891
    19042

    -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    IPL from Toro Master Parts Viewer
    46 pages 3.28MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

    Details & Attachments
    3 pages 116.93KB
    1986 312-8 model 21-12K803 - Probably manufactured by Toro
    1986 serial numbers that have shown up for the 21-12K803
    15253

    68 downloads

    Updated

  25. Free

    Tractor 1986 312-A D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    46 pages 3.42MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Transmission drive belt 108501 - (HB/5L x 81.50" or 5/8" x 81.5")
    Muffler to engine block gasket is Kohler part #  235122-S
    Tractor weight 692 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 117.92KB

    1986 312-A model 21-12KE01 - Probably manufactured by Wheel Horse
    1986 serial numbers that have shown up for the 21-12KE01
    15989

    ----------------------------------------------------------------------------------------------
    IPL from Toro Master Parts Viewer
    46 pages 3.43MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Transmission drive belt 108501 - (HB/5L x 81.50" or 5/8" x 81.5")

    Muffler to engine block gasket is Kohler part #  235122-S

    Details & Attachments
    3 pages 118.37KB

    1986 312-A model 21-12KE02 - Probably manufactured by Toro
    1986 serial numbers that have shown up for the 21-12KE02
    15494

    114 downloads

    Updated

Sign in to follow this
×
