Mower decks & reel

Sign in to follow this

Manuals for grass gutting

620 files

  1. Free

    Mower Rotary 37in SD 1987 07-06BC02 Bagger Twin rear 7 cu ft TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    2 pages 174.98KB

    Listed at Toro as 1986 but suspect this is a service replacement for the 1986-87 model 07-06BC01 and possibly replaced by 07-07BC01
    Fits 300-Series tractors
    Requires 05-37MS through 78315 more deck

    Mower Rotary 1987 37in SD model 07-06BC02 Bagger
    1987 serial numbers that have shown up for the 07-06BC02
    39025

    13 downloads

    Updated

  2. Free

    Mower Rotary 42in SD 1968 5-1421 OM IPL SN.pdf

    Operator manual #A-5252
    IPL
    10 pages 1.75MB
    Dated 5/1/67

    Includes PSB's #094 #097 #221B
    5-1421 42" Side discharge mower deck. Commonly used on mid-late 60s models using 10 or 12 Hp.
    Fits Raider, Charger and Electro long frame models

    Drive belt 7041 (1/2" x 72")
    Spindle belt 6738 (1/2" X 86")

    Mower spindle assemblies could be J, N, U, V, X or Z
    For N and U see service bulletin 221B
    For X and V see service bulletin 207B

    6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1968 42in SD model 5-1421

    1968 serial numbers that have shown up for the 5-1421
    406134
    406214
    418777
    430023
    460100

    190 downloads

    Updated

  3. Free

    Chart Belts Mower Spindle & drive 20 pages #492-0392.pdf

    1956-1999 Chart belt
    20 pages 1.77MB

    Belt sizes on the last pages

    Mistakes in mower belt chart

    1967
    RL-367 drive belt lists 1587 Correct belt is 1563

    1968
    5-1361 drive belt lists 8975 Correct belt is 1563
    5-1362 drive belt lists 8975 Correct belt is 1563
    5-2321 drive belt lists 8975 Correct belt is 1577 replaced by 7430
    5-2322 drive belt lists 8975 Correct belt is 1577 replaced by 7430
    5-2361 drive belt lists 1587 Correct belt is 1577 replaced by 7430
    5-2362 drive belt lists 1587 Correct belt is 1577 replaced by 7430

    1969
    5-8321 drive belt 8975 (1/2" x 58") [1561 in the belt chart is wrong]

    1970
    5-8322 drive belt 8975 (1/2" x 58") [104865 in the belt chart is wrong]

    1971
    5-1000 drive belt 9782 (1/2" x 69") [9783 in the chart is wrong]

    1978
    85-42MR01 drive belt 108834 is correct as per PSB #272

    1979
    95-42MR01 drive belt 108834 is correct as per PSB #272
    95-42MR02 drive belt 108834 is correct as per PSB #272

    1980-1983
    05-42MR01 drive belt 108834 is correct as per PSB #272

    1983
    The 2nd A5-42MS02 in the chart should be A5-48MS02

    1984
    Model 23-11BP03 tractor shows belt 108491 (1/2" x 67"). Believe it should be 108503 (1/2" x 65.25") for 05-32XS02 mower on the A-111 5-Speed
    05-42MS02 should be 05-42MR02

    1985
    There is one model number missing for every style and size of deck listed. Do a search of the Files for a deck model number if it is not listed in the chart. The belts are listed there.

    1991
    Model C5-60SC02 not in the chart { (Drive belt 113072 (1/2" x 103") (Spindle belt 112449 (5/8" x 131.25") }

    1993
    8-32 Rear Engine Rider Recycler model 70042 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    10-32 Rear Engine Rider Recycler model 70080 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    12-32 Rear Engine Rider Recycler model 70120 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    12-32 Rear Engine Rider model 70140 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]

    1994
    10-32 Rear Engine Rider Recycler model 70080 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    12-32 Rear Engine Rider Recycler model 70120 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    10-32e Rear Engine Rider Recycler model 70100 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    12-32e Rear Engine Rider Recycler model 70141 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]

    1996
    78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
    78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125

    1997
    78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
    78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125

    1998
    78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
    78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125

    1999
    78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738

    1999 and 2000
    79375 36" tiller for 5xi models
    Front belt 98-8707 or 94-7877 (1/2" x 113.75" found with Google search)
    Rear belt 98-8706 (1/2" x 92.66" found with Google search)

    1,012 downloads

    Updated

  4. Free

    Mower Rotary 36in RD 1986-1990 05-36MR04 OM IPL SN.pdf

    Operator manuals
    8 pages 1.35MB - #810403R1 or 810403 R1
    8 pages 1.79MB - #810518R1 or 810518 R1

    IPL #810407R1 or 810407 R1
    7 pages 2.28MB
    Dated 4/85

    Fits 300-Series, 400-Series and some 500-Series tractors
    Fits B-Series and C-Series tractors

    Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
    1972 Commando 800 model 1-0110
    1973 8hp 4-Speed model 1-0120
    1974 B-80 4-Speed models 1-0140 and 1-0145
    1974 B-100 Auto model 1-0510
    1975 B-80 4-Speed model 1-0141
    1975 B-100 Auto model 1-0511

    Drive belt 102741 (1/2" x 96.6") for C-Series, 300, 400 and some 500 tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")

    Spindle belt 8411 (1/2" x 76.94")

    Mower spindle assembly H

    107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)

    Mower Rotary 1986 36in RD model 05-36MR04

    Mower Rotary 1987 36in RD model 05-36MR04

    Mower Rotary 1988 36in RD model 05-36MR04
    1988 serial numbers that have shown up for the 05-36MR04
    71044 - Build date 1987 7288 October 15 Thursday
    71654 - Model year a guess

    Mower Rotary 1989 36in RD model 05-36MR04
    1989 serial numbers that have shown up for the 05-36MR04
    80871 - Build date 1988 8287 October 13 Thursday
    81226 - Model year a guess
    81297 - Model year a guess
    81392 - Model year a guess

    Mower Rotary 1990 36in RD model 05-36MR04
    1990 serial numbers that have shown up for the 05-36MR04
    0020661 - Build date 1990 0108 April 18 Wednesday

    253 downloads

    Updated

  5. Free

    Mower Rotary 42in RD 1986-1988 05-42MR04 OM IPL SN.pdf

    Operator manual #810403R1 or 810403 R1
    8 pages 1.35MB
    Dated 5/85

    Operator manual #810518R1 or 810518 R1
    8 pages 1.79MB
    Printed 3/87

    IPL #810407
    7 pages 2.41MB
    Dated 4/85

    Fits 300 and 400-Series tractors

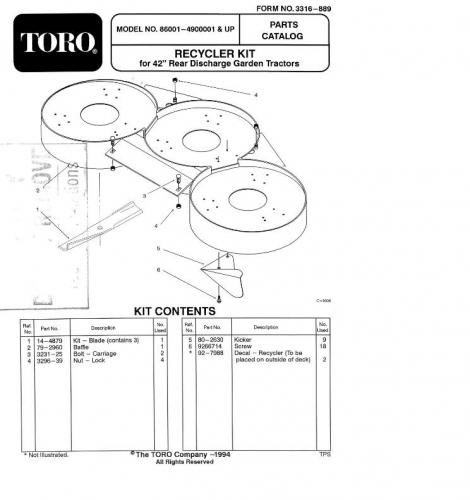

    86001 recycler kit can be added

    Drive belt 108834 (1/2" x 98") [Replaces 102741 as per PSB #272 in this application]
    Spindle belt 106125 (1/2" x 89.03")

    Uses 106635 106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)

    Mower Rotary 1986 42in RD model 05-42MR04
    1986 serial numbers that have shown up for the 05-42MR04
    61671 - Build date 1985 5339 December 05 Thursday

    Mower Rotary 1987 42in RD model 05-42MR04
    1987 serial numbers that have shown up for the 05-42MR04
    71282 - Build date 1987 7252 September 09 Wednesday
    7218x

    Mower Rotary 1988 42in RD model 05-42MR04
    1988 serial numbers that have shown up for the 05-42MR04
    81669 - Build date 1987 7336 December 02 Wednesday
    81751
    82018
    82760
    82861
    82891 - Build date 1988 8117 April 26 Tuesday

    272 downloads

    Updated

  6. Free

    Mower Rotary 42in SD 1980 05-42MS01 OM IPL SN.pdf

    Operator manual #810306R1 or 810306 R1
    7 pages 1.29MB

    IPL #810172R1 or 810172 R1
    7 pages 788.25KB

    Fits C-Series tractors and 1100 Special

    Drive belt 102742 replaced by 94-2501 (1/2" x 103")
    Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
    Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")

    Spindle belt 6738 (1/2" x 86")

    Mower spindle assemblies could be L, M, V or Z
    For V see service bulletin 207B

    106077 replaced by 106636 3-blade set (3/4" round hole)

    Mower Rotary 1980 42in SD model 05-42MS01

    1980 serial numbers that have shown up for the 05-42MS01
    00023122 - Build date 1980 0071 March 11 Tuesday
    00027405
    00027670 - Build date 1980 0142 May 21 Wednesday

    58 downloads

    Updated

  7. Free

    Mower Rotary 42in RD 1977 75-42MR01 TIPL DNA SN.pdf

    IPL from Toro Master Parts Viewer
    4 pages 268.72KB

    Fits B-Series and C-Series tractors
    Includes PSB #209 for parts list corrections  - idler arm for the spindle belt idler pulley

    Drive belt 102741 (1/2" x 96.6") (Gates replacement BladeRunner 6638BR 17/32" x 96.75")

    Spindle belt 106125 (1/2" x 89.03") - This model uses a long idler arm. See PSB 209. The 65-42MR01 used a triangular idler arm.

    Mower spindle assemblies could be K, V, W or Z
    For V and W see service bulletin 207B

    106586 3-blade set replaces 105837 blade and no longer available (5/8" x 3/4" double-D center hole)

    DNA
    75-42MR01 replaces 65-42MR01 (Both use blades with 5/8" x 3/4" double-D center hole)
    75-42MR01 replaced by 75-42MR02, 85-42MR01, 95-42MR01, 95-42MR02, 05-42MR01, 05-42MR02, 05-42MR03, 05-42MR04, 15-42RC01, 15-42RC02, 78350 (These use blades with 3/4" center hole except the 75-42MR01)

    Mower Rotary 1977 42in RD model 75-42MR01

    1977 serial numbers that have shown up for the 75-42MR01
    002961
    004155 - Build date 1976 6353 December 19 Monday
    013418

    65 downloads

    Updated

  8. Free

    Mower Rotary 42in SD 1986-1988 05-42MS05 3-400 OM IPL SN.pdf

    Operator manual #810403R1 or 810403 R1 (This is a better copy)
    8 pages 1.35MB
    Dated 05/85

    Operator manual #810518R1
    8 pages 1.79MB
    Dated 03/87

    IPL #810407R1
    7 pages 2.57MB
    Dated 4/85

    Fits 300 and 400-Series tractors

    Drive belt 102742 replaced by 94-2501 (1/2" x 103")
    Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
    Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")

    Spindle belt 6738 (1/2" x 86")

    Mower blades 106077 replaced by 106636 3-blade set (3/4" round hole)

    Mower Rotary 1986 42in SD model 05-42MS05
    1986 serial numbers that have shown up for the 05-42MS05 - Model years are a guess

    Mower Rotary 1987 42in SD model 05-42MS05
    1987 serial numbers that have shown up for the 05-42MS05 - Model years are a guess
    63703
    64691
    65540 - Build date xx43
    66024 - Purchased April 14, 1987
    66452
    69271
    70390
    71065
    72994
    73288
    73476
    73642
    74883
    76085
    77342 - Purchased May 9, 1987
    82374
    82419
    82681 - On an early 1988 tractor
    84331
    84726
    85548
    85680

    Mower Rotary 1988 42in SD model 05-42MS05
    1988 serial numbers that have shown up for the 05-42MS05 - Model years are a guess
    54474
    82961

    599 downloads

    Updated

  9. Free

    Mower Rotary 42in SD 1997-2001 78345 3-400 OM SN.pdf

    Operators Manual #3318-947RevA or 3318-947 RevA
    24 pages 1.41MB

    Fits 300 and 400-Series tractors
    Uses 106636 mower blade kit

    Mower Rotary 1997 42in SD model 78345 Serial 7900001-7999999
    1997 serial numbers that have shown up for the 78345
    7902038
    7902561

    Mower Rotary 1998 42in SD model 78345 Serial 8900001-8999999
    1998 serial numbers that have shown up for the 78345
    8900309
    8901401

    Mower Rotary 1999 42in SD model 78345 Serial 9900001-9999999
    1999 serial numbers that have shown up for the 78345
    9900925

    Mower Rotary 2000 42in SD model 78345 Serial 200000001-200999999
    2000 serial numbers that have shown up for the 78345
    200001263

    Mower Rotary 2001 42in SD model 78345 Serial 210000001-210999999
    2001 serial numbers that have shown up for the 78345
    210000104
    210001000

    1,354 downloads

    Updated

  10. Free

    Mower Rotary 42in SD 1981-1983 05-42MS02 OM TIPL SN.pdf

    Operator manual #810306R1 or 810306 R1
    7 pages 1.29MB

    IPL from Toro Master Parts Viewer
    7 pages 388.11KB
    This IPL includes the 48" deck so be careful selecting part numbers.

    Drive belt 102742 replaced by 94-2501 (1/2" x 103")
    Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
    Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")

    Spindle belt 6738 (1/2" x 86")

    Mower spindle assemblies could be L, M, V or Z
    For V see service bulletin 207B

    106077 replaced by 106636 3-blade set (3/4" round hole)

    Mower Rotary 1981 42in SD model 05-42MS02 - fits C-Series and GT-2500 tractors
    1981 serial numbers that have shown up for the 05-42MS02
    036011
    038387 - Build date 1981 11xx
    041637 - Could also be 1982 or 1983
    043140 - Could also be 1982 or 1983

    Mower Rotary 1982 42in SD model 05-42MS02 - fits C-Series, GT-1642 and GT-1848 tractors
    1982 serial numbers that have shown up for the 05-42MS02
    33225 - Build date 1981 x256 September 13 Sunday - Model year a guess
    39008 - Build date 1982 2048 February 17 Wednesday

    Mower Rotary 1983 42in SD model 05-42MS02 - fits C-Series, GT-1142, GT-1642 and GT-1848 tractors
    1983 serial numbers that have shown up for the 05-42MS02
    42472 - Build date 1982 2355 December 21 Tuesday

    208 downloads

    Updated

  11. Free

    Mower Rotary 36in SD 1973-1974 5-0721 CW OM PL SN.pdf

    Operator manual #803858
    6 pages 2.86MB

    Parts list only
    4 pages 79.38KB

    CW spindle rotation

    Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
    1972 Commando 800 model 1-0110
    1973 8hp 4-Speed model 1-0120
    1974 B-80 4-Speed models 1-0140 and 1-0145
    1974 B-100 Auto model 1-0510
    1975 B-80 4-Speed model 1-0141
    1975 B-100 Auto model 1-0511

    Drive belt 102741 (1/2" x 96.6") for C-Series tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")

    Spindle belt 8411 (1/2" x 76.94")

    Mower spindle assemblies could be B, A1, G1 or Z
    For A1 see service bulletin 292B
    For G1 see service bulletin 292B

    100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
    2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.

    Mower Rotary 1973 36in SD model 5-0721
    1973 serial numbers that have shown up for the 5-0721
    0921875
    0932218 - Model 5-0721-8
    0959140
    0980298
    0980368

    Mower Rotary 1974 36in SD model 5-0721
    1974 serial numbers that have shown up for the 5-0721
    0045012
    0045098
    0055472

    107 downloads

    Updated

  12. Free

    Mower Rotary 37in SD 1987-1989 35-37SL01 OM IPL SN.pdf

    Operator manual #810422R1
    8 pages 885.01KB

    The operator manual listed @ Toro is #810481R1

    IPL #810511R1
    5 pages 1.67MB

    Fits 208-4, 211-4, 211-5, 212-5, 212-6, 212-H

    Mower drive and spindle belt 113141 replaced by 121000 (1/2" x 75.9")

    Mower Rotary 1987 37in SD model 35-37SL01
    1987 serial numbers that have shown up for the 35-37SL01
    71025 - Build date 1987 7038 February 07 Saturday
    80248
    83181

    Mower Rotary 1988 37in SD model 35-37SL01
    1988 serial numbers that have shown up for the 35-37SL01
    09852 - Build date 1988 8144 May 23 Monday

    Mower Rotary 1989 37in SD model 35-37SL01
    1989 serial numbers that have shown up for the 35-37SL01
    0015763
    0016237
    0016299

    191 downloads

    Updated

  13. Free

    Mower Sickle Side 42in 1962-64 SMS-42A OM IPL SN.pdf

    Operator manual #A-7137
    IPL
    2 pages 166.08KB - #115-A Manual only
    4 pages 1.62MB - #A-7137 Includes Kit 6051 and PSB #064 on kit 6059

    Fits short frame tractors
    Special instructions for 1045 tractor
    SMS-42A listed as SMS-42-A in the Attachment Interchange

    Engine drive belt 1572 - 4L x 34" or 1/2" x 34"
    Mower drive belt 1588 - A x 59" or 1/2" x 59"

    Mower Sickle 1962 42in Side model SMS-42A
    1962 serial numbers that have shown up for the SMS-42A
    A-06945 - May be a SMS-42
    A-11982
    A-19794
    A-19878
    A-19917 - May be a SMS-42

    Mower Sickle 1963 42in Side model SMS-42A
    1963 serial numbers that have shown up for the SMS-42A
    A-40113
    A-40170
    A-40378
    A-40391
    A-40719 - Located in the UK
    A-40754

    Mower Sickle 1964 42in Side model SMS-42A
    1964 serial numbers that have shown up for the SMS-42A
    A-75146
    A-75181


    112 downloads

    Updated

  14. Free

    Mower Vacuum Lawn 42in 48in 2001-2007 2010 2012 79301 OM sn.pdf

    Operator manual #3324-840
    20 pages 444.33KB

    Fits 300 400 500-Series tractors

    Mower Rotary 2001 42in SD model 79301 Vacuum Serial 210000001-210999999
    Mower Rotary 2002 42in SD model 79301 Vacuum Serial 220000001-220999999
    Mower Rotary 2003 42in SD model 79301 Vacuum Serial 230000001-230999999
    Mower Rotary 2004 42in SD model 79301 Vacuum Serial 240000001-240999999
    Mower Rotary 2005 42in SD model 79301 Vacuum Serial 250000001-250999999
    Mower Rotary 2006 42in SD model 79301 Vacuum Serial 260000001-260999999
    Mower Rotary 2007 42in SD model 79301 Vacuum Serial 270000001-270999999
    Mower Rotary 2010 42in SD model 79301 Vacuum Serial 310000001-310999999
    Mower Rotary 2012 42in SD model 79301 Vacuum Serial 312000001-312999999

    Mower Rotary 2001 48in SD model 79301 Vacuum Serial 210000001-210999999
    Mower Rotary 2002 48in SD model 79301 Vacuum Serial 220000001-220999999
    Mower Rotary 2003 48in SD model 79301 Vacuum Serial 230000001-230999999
    Mower Rotary 2004 48in SD model 79301 Vacuum Serial 240000001-240999999
    Mower Rotary 2005 48in SD model 79301 Vacuum Serial 250000001-250999999
    Mower Rotary 2006 48in SD model 79301 Vacuum Serial 260000001-260999999
    Mower Rotary 2007 48in SD model 79301 Vacuum Serial 270000001-270999999
    Mower Rotary 2010 48in SD model 79301 Vacuum Serial 310000001-310999999
    Mower Rotary 2012 48in SD model 79301 Vacuum Serial 312000001-312999999

    35 downloads

    Updated

  15. Free

    Mower Rotary 42in SD 2002-2012 2014 2016 78345 3-400 OM SN.pdf

    Operator manual #3326-934
    20 pages

    Fits 300 and 400-Series tractors

    Mower Rotary 2002 42in SD model 78345 Serial 220000001-220999999
    2002 serial numbers that have shown up for the 78345
    220000626

    Mower Rotary 2003 42in SD model 78345 Serial 230000001-230999999

    Mower Rotary 2004 42in SD model 78345 Serial 240000001-240999999

    Mower Rotary 2005 42in SD model 78345 Serial 250000001-250999999
    2005 serial numbers that have shown up for the 78345
    250000562

    Mower Rotary 2006 42in SD model 78345 Serial 260000001-260999999

    Mower Rotary 2007 42in SD model 78345 Serial 270000001-270999999

    Mower Rotary 2008 42in SD model 78345 - None made

    Mower Rotary 2009 42in SD model 78345 Serial 290000001-290999999
    2009 serial numbers that have shown up for the 78345
    290000111
    290002107

    Mower Rotary 2010 42in SD model 78345 Serial 310000001-310999999

    Mower Rotary 2011 42in SD model 78345 Serial 311000001-311999999

    Mower Rotary 2012 42in SD model 78345 Serial 312000001-312999999
    2012 serial numbers that have shown up for the 78345
    312000108

    Mower Rotary 2013 42in SD model 78345 - None made

    Mower Rotary 2014 42in SD model 78345 Serial 314000001-314999999

    Mower Rotary 2015 42in SD model 78345 - None made

    Mower Rotary 2016 42in SD model 78345 Serial 316000001-316999999

    70 downloads

    Updated

  16. Free

    Mower Rotary 42in RD 2002-2014 78350 OM SN.pdf

    Operator manual #3326-935RevA or 3326-935 RevA
    20 pages 556.45KB

    Fits 300, 400 and 500-Series tractors

    Mower Rotary 2002 42in RD model 78350 Serial 220000001-220999999

    Mower Rotary 2003 42in RD model 78350 Serial 230000001-230999999

    Mower Rotary 2004 42in RD model 78350 Serial 240000001-240999999

    Mower Rotary 2005 42in RD model 78350 Serial 250000001-250999999
    2005 serial numbers that have shown up for the 78350
    250000127

    Mower Rotary 2006 42in RD model 78350 Serial 260000001-260999999

    Mower Rotary 2007 42in RD model 78350 Serial 270000001-270999999

    Mower Rotary 2008 42in RD model 78350 Serial 280000001-280999999

    Mower Rotary 2009 42in RD model 78350 Serial 290000001-290999999

    Mower Rotary 2010 42in RD model 78350 Serial 310000001-310999999

    Mower Rotary 2011 42in RD model 78350 Serial 311000001-311999999

    Mower Rotary 2012 42in RD model 78350 Serial 312000001-312999999

    Mower Rotary 2013 42in RD model 78350 - None built

    Mower Rotary 2014 42in RD model 78350 Serial 314000001-314999999

    Mower Rotary 2016 42in RD model 78350 Serial 316000001-316999999
    2016 serial numbers that have shown up for the 78350
    316000154

    57 downloads

    Updated

  17. Free

    Mower Rotary 48in SD 2002-2012 2015-2016 78361 3-4-500 OM SN.pdf

    Operator manual #3326-936RevB or 3326-936 RevB
    20 pages 555.11KB

    Fits 300, 400 and 500-Series tractors

    Mower Rotary 2002 48in SD model 78361 Serial 220000001-220999999

    Mower Rotary 2003 48in SD model 78361 Serial 230000001-230999999
    2003 serial numbers that have shown up for the 78361
    230000384

    Mower Rotary 2004 48in SD model 78361 Serial 240000001-240999999

    Mower Rotary 2005 48in SD model 78361 Serial 250000001-250999999

    Mower Rotary 2006 48in SD model 78361 Serial 260000001-260999999
    2006 serial numbers that have shown up for the 78361
    260000242
    260000291

    Mower Rotary 2007 48in SD model 78361 Serial 270000001-270999999

    Mower Rotary 2008 48in SD model 78361 - None built

    Mower Rotary 2009 48in SD model 78361 Serial 290000001-290999999

    Mower Rotary 2010 48in SD model 78361 Serial 310000001-310999999

    Mower Rotary 2011 48in SD model 78361 Serial 311000001-311999999

    Mower Rotary 2012 48in SD model 78361 Serial 312000001-312999999

    Mower Rotary 2013 48in SD model 78361 - None built

    Mower Rotary 2014 48in SD model 78361 - None built

    Mower Rotary 2015 48in SD model 78361 Serial 315000001-315999999

    Mower Rotary 2016 48in SD model 78361 Serial 316000001-316999999
    316000153



    37 downloads

    Updated

  18. Free

    Mower Rotary 48in SD 2002-2005 78269 260 OM German sn.pdf

    Operator manual #3327-228
    20 pages 561.99KB

    Fits 260-Series export models
    Available in English, French, Dutch, Italian

    Mower Rotary 2002 48in SD model 78269 Serial 220000001-220999999

    Mower Rotary 2003 48in SD model 78269 Serial 230000001-230999999

    Mower Rotary 2004 48in SD model 78269 Serial 240000001-240999999

    Mower Rotary 2005 48in SD model 78269 Serial 250000001-250999999

    8 downloads

    Updated

  19. Free

    Mower Rotary 48in SD 2002-2005 78269 260 OM French sn.pdf

    Operator manual #3327-229
    20 pages 475.53KB

    Fits 260-Series export models
    Available in English, Dutch, German, Italian

    Mower Rotary 2002 48in SD model 78269 Serial 220000001-220999999

    Mower Rotary 2003 48in SD model 78269 Serial 230000001-230999999

    Mower Rotary 2004 48in SD model 78269 Serial 240000001-240999999

    Mower Rotary 2005 48in SD model 78269 Serial 250000001-250999999

    16 downloads

    Updated

  20. Free

    Mower Rotary 48in SD 2002-2005 78269 260 OM English sn.pdf

    Operator manual #3327-230
    20 pages 554.93KB

    Fits 260-Series export models
    Available in French, Dutch, German, Italian

    Mower Rotary 2002 48in SD model 78269 Serial 220000001-220999999

    Mower Rotary 2003 48in SD model 78269 Serial 230000001-230999999

    Mower Rotary 2004 48in SD model 78269 Serial 240000001-240999999

    Mower Rotary 2005 48in SD model 78269 Serial 250000001-250999999

    6 downloads

    Updated

  21. Free

    Mower Rotary 48in SD 2002-2005 78269 260 OM Italian sn.pdf

    Operator manual #3327-231
    20 pages 565.70KB

    Fits 260-Series export models
    Available in English, Dutch, French, German

    Mower Rotary 2002 48in SD model 78269 Serial 220000001-220999999

    Mower Rotary 2003 48in SD model 78269 Serial 230000001-230999999

    Mower Rotary 2004 48in SD model 78269 Serial 240000001-240999999

    Mower Rotary 2005 48in SD model 78269 Serial 250000001-250999999

    5 downloads

    Updated

  22. Free

    Mower Rotary 48in SD 2002-2005 78269 260 OM Dutch sn.pdf

    Operator manual #3327-232
    20 pages 476.25KB

    Fits 260-Series export models

    Available in English, French, German, Italian

    Mower Rotary 2002 48in SD model 78269 Serial 220000001-220999999

    Mower Rotary 2003 48in SD model 78269 Serial 230000001-230999999

    Mower Rotary 2004 48in SD model 78269 Serial 240000001-240999999

    Mower Rotary 2005 48in SD model 78269 Serial 250000001-250999999

    12 downloads

    Updated

  23. Free

    Mower Rotary 36in RD 2002-2006 78305 OM SN.pdf

    Operator manual #3326-933
    20 pages 508.37KB

    Fits 300-Series and 400-Series tractors

    Mower Rotary 2002 36in RD model 78305 Serial 220000001-220999999
    2002 serial numbers that have shown up for the 78305
    220000167

    Mower Rotary 2003 36in RD model 78305 Serial 230000001-230999999

    Mower Rotary 2004 36in RD model 78305 Serial 240000001-240999999

    Mower Rotary 2005 36in RD model 78305 Serial 250000001-250999999

    Mower Rotary 2006 36in RD model 78305 Serial 260000001-260999999

    10 downloads

    Updated

  24. Free

    Mower Vacuum Lawn 42in 48in 2001-2004 79203 OM sn.pdf

    Operator manual #3324-726
    20 pages 834.83KB

    Fits 260-Series tractors

    Mower Vacuum Lawn 42in 48in 2001 model 79203 Serial 210000001-210999999

    Mower Vacuum Lawn 42in 48in 2002 model 79203 Serial 220000001-220999999

    Mower Vacuum Lawn 42in 48in 2003 model 79203 Serial 230000001-230999999

    Mower Vacuum Lawn 42in 48in 2004 model 79203 Serial 240000001-240999999

    16 downloads

    Updated

  25. Free

    Mower Vacuum Lawn 42in 1980-1984 07-42VC01 TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    9 pages 640.72KB

    Fits C-Series tractors
    Requires 5 cu. ft. dump cart
    See PSB #296A Eaton hydro requires smaller fan # 108515

    Mower Rotary 1980 42in SD model 07-42VC01 Vacuum
    1980 serial numbers that have shown up for the 07-42VC01
    03758 - Could be 1981 or 1982

    Mower Rotary 1981 42in SD model 07-42VC01 Vacuum
    1981 serial numbers that have shown up for the 07-42VC01
    03758 - Could be 1980 or 1982

    Mower Rotary 1982 42in SD model 07-42VC01 Vacuum
    1982 serial numbers that have shown up for the 07-42VC01
    03758 - Could be 1980 or 1981

    Mower Rotary 1983 42in SD model 07-42VC01 Vacuum 20 bushel

    Mower Rotary 1984 42in SD model 07-42VC01 Vacuum 20 bushel

    16 downloads

    Updated

Sign in to follow this


×
